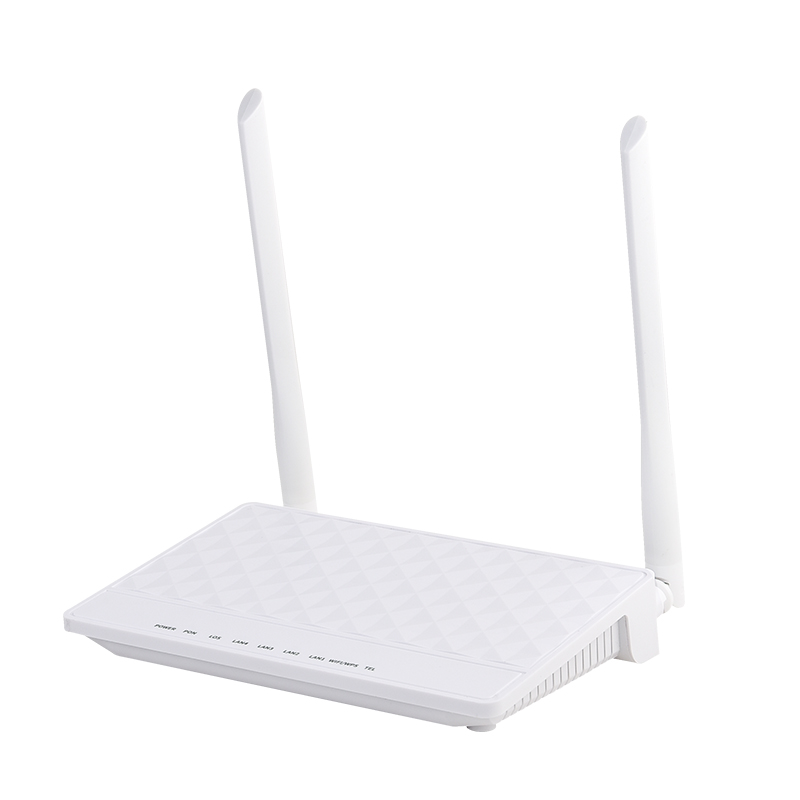

AS-ONU27 1GE+3FE+VOIP+2.4G WIFI
Product Overview
AS-ONU27 model ONU is a user terminal device independently developed in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.AS-ONU27 is an XPON product that can be adapted to EPON and GPON networks without replacing
equipment and firmware.
Features
♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Bi-directional FEC
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings
♦ Support DDSN, ALG, DMZ and UPNP
Highlights
♦ Support EPON/GPON mode and switch mode automatically
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
♦ Support PPPoE/ Static IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Provide Maximum rate 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple
♦ SSID Settings
♦ Chipest :Realtek
♦ Compatible with 95% Third-party OLTs (Including
♦ Huawei/ZTE/Fiberhome/BT-PON and so on)
Product Tags:
|
|

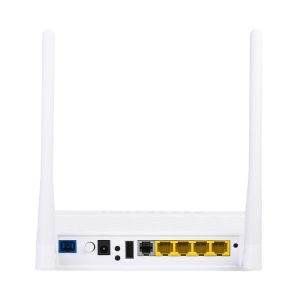

AS-ONU27 GPON 1GE+3FE+VOIP+2.4G WIFI Images
|
